Erosion-Corrosion Flow Loop

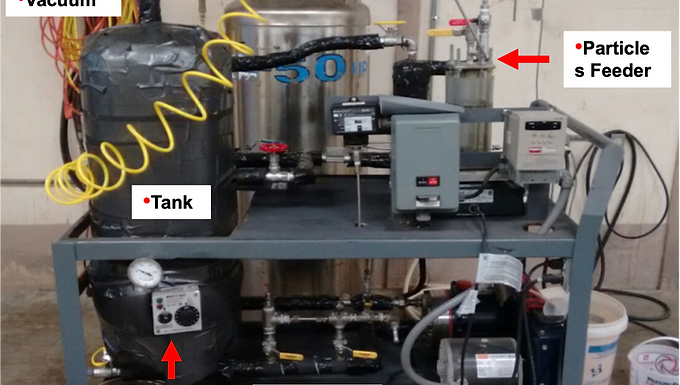

This facility can be used for erosion, corrosion and erosion-corrosion studies. The test section is a single test cell. Flow velocity: up to 33 ft/s (10 m/s). Temperature: 57-93 °C (135-200 °F). Pressure (CO2/N2): up to 150 psig (1.13 MPa). pH (adj. by adding NaHCO3): range between 4.0-7.0. NaCl concentration: range between 1.0-20 wt%. Measurement methods: Weight Loss (WL) & Linear Polarization Resistance (LPR). Figure 7 presents the schematic of the facility.
